최근 장만한 2호기가 팬이 가끔 돌아갑니다. Proxmox VE에 ddclient만 설치하고 따로 설치한 것도 없거든요. 그래서 모니터링 방법에 대해서 좀 뒤적거려 봤습니다.
아니나 다를까~
공식적으로 지원하는 기능은 아니지만, MOD가 있습니다! 만쉐~
우선 lm-sensors부터 알아보고 갈께요
서버의 경우 IPMI를 통해서 관련 정보를 얻을 수 있으나, 데스크탑 제품의 경우는 IPMI를 제공하지 않습니다. 그래서 lm-sensors라는 패키지를 설치해서 보드의 센서에서 정보를 가져와야 합니다.
lm-sensors는 Linux에서 CPU/메인보드 온도, 팬 속도, 전압 등을 모니터링할 수 있도록 해줍니다.
lm-sensors 패키지를 설치하고, 센서를 인식하기 위해서 sensors-detect 명령을 실행시킵니다.
apt install lm-sensors
sensors-detect 명령으로 컴퓨터가 어떤 센서들을 지원하는지 검색합니다. 사용하는 컴퓨터에 따라 다른 결과가 나옵니다. 기본값으로 엔터 키 입력하면서 넘어가면 됩니다.
sensors-detect
노드의 Summary 페이지 개조(MOD)
Summary 페이지에 CPU 코어별 온도(CPU Thermal State), 드라이브 온도 정보(Drive), 시스템 정보(System Information) 등을 추가로 표시하도록 개조해주는 스크립트를 만들어 주신 분이 있습니다. 감사하게 받아다 적용해 보겠습니다.
wget https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh bash pve-mod-gui-sensors.sh install
쉘 스크립트도 무난하게 질문에 엔터만 입력하면서 넘어가면 됩니다.
적용 예

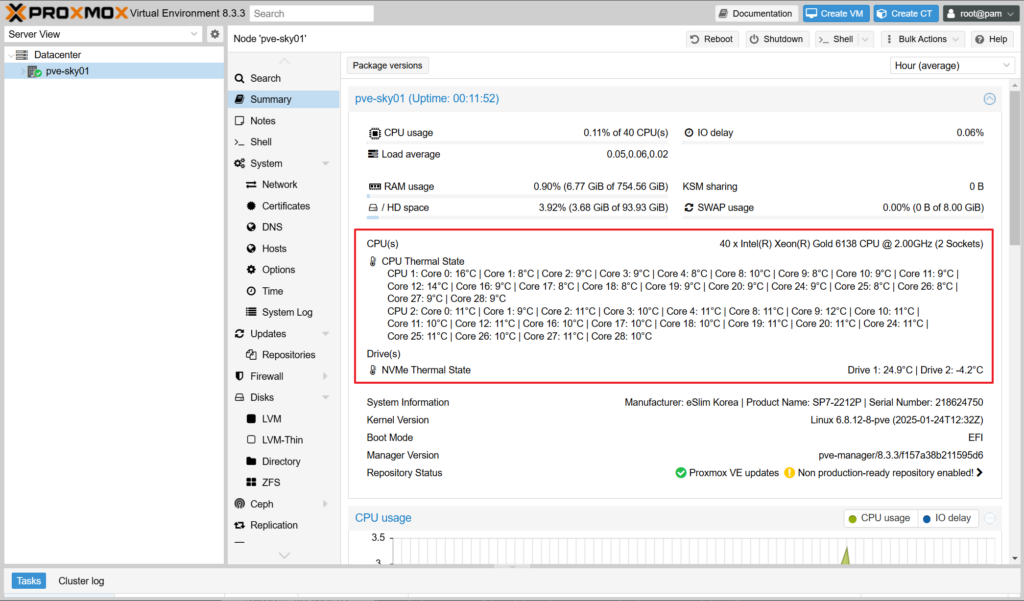

요즘 사용 중인 2가지 미니PC와 연습용 서버에 적용해 봤습니다.

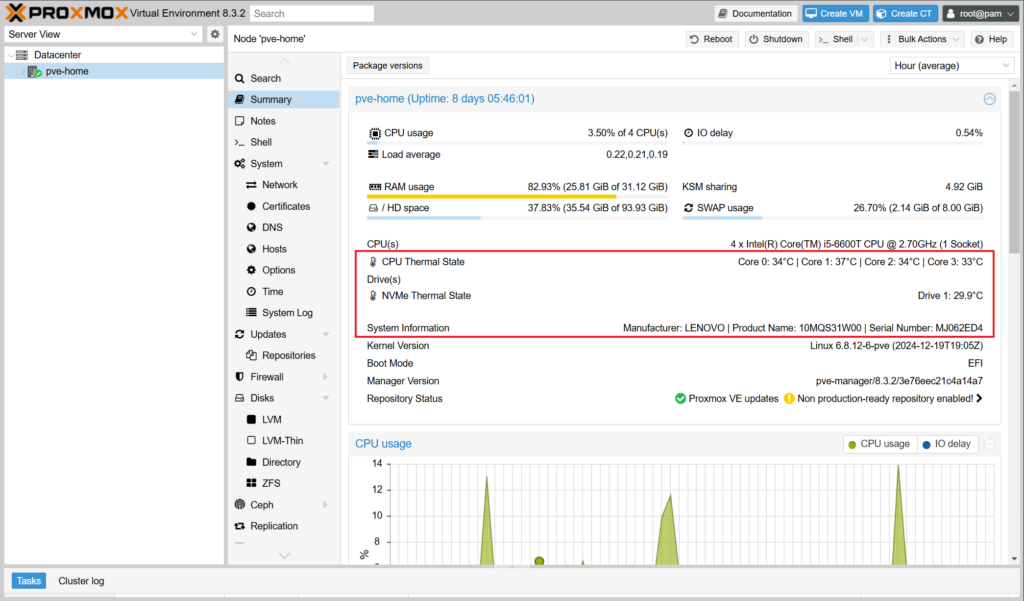

Lenovo M710q Intel i5-6600T 실행 예
root@pve-home:~# sensors-detect
# sensors-detect version 3.6.0
# System: LENOVO 10MQS31W00 [ThinkCentre M710q]
# Board: LENOVO 3111
# Kernel: 6.8.12-6-pve x86_64
# Processor: Intel(R) Core(TM) i5-6600T CPU @ 2.70GHz (6/94/3)
This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
Intel digital thermal sensor... Success!
(driver `coretemp')
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... Yes
Found `Nuvoton NCT6683D eSIO' Success!
(address 0xa20, driver `nct6683')
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Probing for `IPMI BMC KCS' at 0xca0... No
Probing for `IPMI BMC SMIC' at 0xca8... No
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (yes/NO):
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-i801' for device 0000:00:1f.4: Kaby Lake (PCH)
Next adapter: SMBus I801 adapter at f040 (i2c-0)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpc (i2c-1)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpb (i2c-2)
Do you want to scan it? (yes/NO/selectively):
Next adapter: i915 gmbus dpd (i2c-3)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX B/DDI B/PHY B (i2c-4)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX C/DDI C/PHY C (i2c-5)
Do you want to scan it? (yes/NO/selectively):
Next adapter: AUX D/DDI D/PHY D (i2c-6)
Do you want to scan it? (yes/NO/selectively):
Now follows a summary of the probes I have just done.
Just press ENTER to continue:
Driver `nct6683':
* ISA bus, address 0xa20
Chip `Nuvoton NCT6683D eSIO' (confidence: 9)
Driver `coretemp':
* Chip `Intel digital thermal sensor' (confidence: 9)
To load everything that is needed, add this to /etc/modules:
#----cut here----
# Chip drivers
coretemp
nct6683
#----cut here----
If you have some drivers built into your kernel, the list above will
contain too many modules. Skip the appropriate ones!
Do you want to add these lines automatically to /etc/modules? (yes/NO)yes
Successful!
Monitoring programs won't work until the needed modules are
loaded. You may want to run '/etc/init.d/kmod start'
to load them.
Unloading cpuid... OK
root@pve-home:~# sensors
nvme-pci-0100
Adapter: PCI adapter
Composite: +28.9°C (low = -20.1°C, high = +69.8°C)
(crit = +79.8°C)
ERROR: Can't get value of subfeature temp2_min: I/O error
ERROR: Can't get value of subfeature temp2_max: I/O error
Sensor 1: +45.9°C (low = +0.0°C, high = +0.0°C)
coretemp-isa-0000
Adapter: ISA adapter
Package id 0: +38.0°C (high = +84.0°C, crit = +100.0°C)
Core 0: +36.0°C (high = +84.0°C, crit = +100.0°C)
Core 1: +37.0°C (high = +84.0°C, crit = +100.0°C)
Core 2: +34.0°C (high = +84.0°C, crit = +100.0°C)
Core 3: +34.0°C (high = +84.0°C, crit = +100.0°C)
root@pve-home:~# wget https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
--2025-02-04 12:35:19-- https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.109.133, 185.199.108.133, 185.199.111.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.109.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 33764 (33K) [text/plain]
Saving to: ‘pve-mod-gui-sensors.sh’
pve-mod-gui-sensors.sh 100%[==============================================>] 32.97K --.-KB/s in 0s
2025-02-04 12:35:19 (103 MB/s) - ‘pve-mod-gui-sensors.sh’ saved [33764/33764]
root@pve-home:~# bash pve-mod-gui-sensors.sh install
Installing the Proxmox VE sensors display mod...
Preparing mod installation...
ERROR: Can't get value of subfeature temp2_max: I/O error
ERROR: Can't get value of subfeature temp2_min: I/O error
Detecting support for CPU temperature sensors...
Detected sensors:
coretemp-isa-0000
Do you wish to display temperatures for all cores [C] or just an average temperature per CPU [a]? (C/a):
[info] Temperatures will be displayed for all cores.
Detecting support for RAM temperature sensors...
[warning] No RAM temperature sensors found.
Detecting support for HDD/SDD temperature sensors...
[warning] No HDD/SSD temperature sensors found.
Detecting support for NVMe temperature sensors...
Detected sensors:
nvme-pci-0100
Detecting support for fan speed readings...
[warning] No fan speed sensors found.
Do you wish to display temperatures in degrees Celsius [C] or Fahrenheit [f]? (C/f):
[info] Temperatures will be presented in degrees Celsius.
Do you wish to enable system information? (Y/n):
[info] System information will be displayed...
Backup of "/usr/share/perl5/PVE/API2/Nodes.pm" saved to "/root/backup/Nodes.pm.2025-02-04_12-36-04".
Backup of "/usr/share/pve-manager/js/pvemanagerlib.js" saved to "/root/backup/pvemanagerlib.js.2025-02-04_12-36-04".
Sensors' output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
System information output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
Expanded space in "/usr/share/pve-manager/js/pvemanagerlib.js".
Sensor display items added to the summary panel in "/usr/share/pve-manager/js/pvemanagerlib.js".
Restarting PVE proxy...
Installation completed.
[info] Clear the browser cache to ensure all changes are visualized.

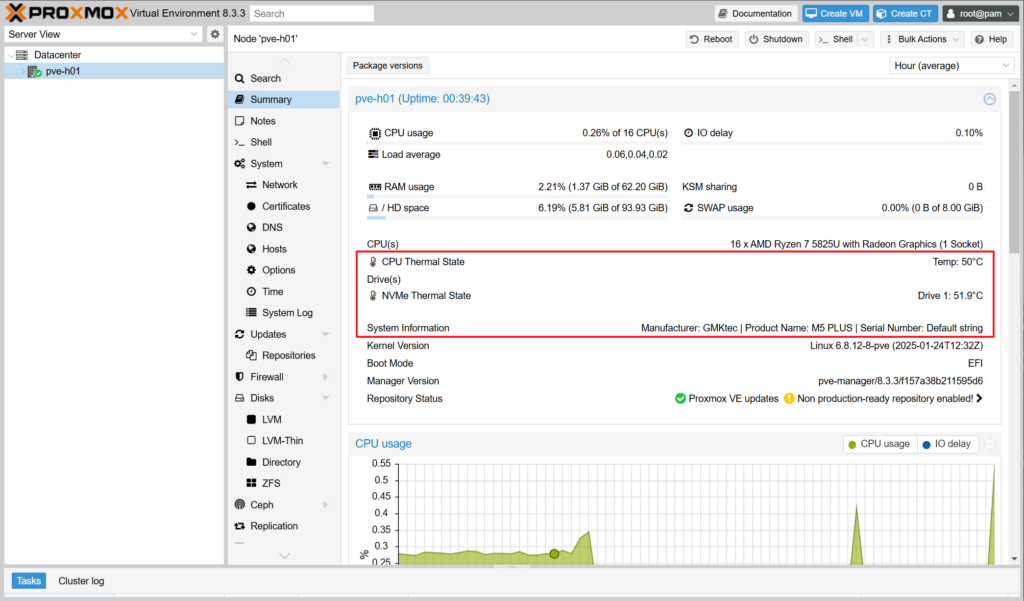

root@pve-home:~#GMKtec M5 PLUS AMD Ryzen 7 5825U 예
root@pve-h01:~# sensors-detect
# sensors-detect version 3.6.0
# System: GMKtec M5 PLUS [Version 1.0]
# Board: GMKtec GMKtec
# Kernel: 6.8.12-8-pve x86_64
# Processor: AMD Ryzen 7 5825U with Radeon Graphics (25/80/0)
This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
Intel digital thermal sensor... No
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... Yes
Found unknown chip with ID 0x5570
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Probing for `IPMI BMC KCS' at 0xca0... No
Probing for `IPMI BMC SMIC' at 0xca8... No
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no):
Probing for `National Semiconductor LM78' at 0x290... No
Probing for `National Semiconductor LM79' at 0x290... No
Probing for `Winbond W83781D' at 0x290... No
Probing for `Winbond W83782D' at 0x290... No
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-piix4' for device 0000:00:14.0: AMD KERNCZ SMBus
Next adapter: SMBus PIIX4 adapter port 0 at 0b00 (i2c-0)
Do you want to scan it? (YES/no/selectively):
Client found at address 0x50
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... Yes
(confidence 8, not a hardware monitoring chip)
Probing for `EDID EEPROM'... No
Client found at address 0x51
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... Yes
(confidence 8, not a hardware monitoring chip)
Next adapter: SMBus PIIX4 adapter port 2 at 0b00 (i2c-1)
Do you want to scan it? (YES/no/selectively):
Next adapter: SMBus PIIX4 adapter port 1 at 0b20 (i2c-2)
Do you want to scan it? (YES/no/selectively):
Client found at address 0x18
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95233'... No
Probing for `National Semiconductor LM95234'... No
Probing for `National Semiconductor LM95235'... No
Probing for `National Semiconductor LM95245'... No
Probing for `National Semiconductor LM64'... No
Probing for `SMSC EMC1047'... No
Probing for `SMSC EMC1402'... No
Probing for `SMSC EMC1403'... No
Probing for `SMSC EMC1404'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x19
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95231'... No
Probing for `National Semiconductor LM95241'... No
Probing for `National Semiconductor LM95245'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1a
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1b
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1c
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP441'... No
Probing for `SMSC EMC1072'... No
Probing for `SMSC EMC1073'... No
Probing for `SMSC EMC1074'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1d
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP441'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1e
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP441'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x1f
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP441'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x28
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Analog Devices ADM1029'... No
Probing for `ITE IT8712F'... No
Client found at address 0x29
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `National Semiconductor LM95235'... No
Probing for `National Semiconductor LM95245'... No
Probing for `Analog Devices ADM1029'... No
Probing for `ITE IT8712F'... No
Probing for `SMSC EMC1402'... No
Probing for `SMSC EMC1403'... No
Probing for `SMSC EMC1404'... No
Client found at address 0x2a
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP441'... No
Probing for `National Semiconductor LM95231'... No
Probing for `National Semiconductor LM95233'... No
Probing for `National Semiconductor LM95241'... No
Probing for `Analog Devices ADM1029'... No
Probing for `ITE IT8712F'... No
Client found at address 0x2b
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `National Semiconductor LM95231'... No
Probing for `National Semiconductor LM95233'... No
Probing for `National Semiconductor LM95241'... No
Probing for `Analog Devices ADM1029'... No
Probing for `ITE IT8712F'... No
Client found at address 0x2c
Probing for `Myson MTP008'... No
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `National Semiconductor LM85'... No
Probing for `National Semiconductor LM96000 or PC8374L'... No
Probing for `Analog Devices ADM1027'... No
Probing for `Analog Devices ADT7460 or ADT7463'... No
Probing for `SMSC EMC6D100 or EMC6D101'... No
Probing for `SMSC EMC6D102'... No
Probing for `SMSC EMC6D103'... No
Probing for `SMSC EMC6D103S or EMC2300'... No
Probing for `SMSC EMC6W201'... No
Probing for `Winbond WPCD377I'... No
Probing for `Analog Devices ADT7470'... No
Probing for `Analog Devices ADT7473'... No
Probing for `Analog Devices ADT7476'... No
Probing for `Analog Devices ADT7490'... No
Probing for `Andigilog aSC7611'... No
Probing for `Andigilog aSC7621'... No
Probing for `National Semiconductor LM87'... No
Probing for `Analog Devices ADM1024'... No
Probing for `National Semiconductor LM93'... No
Probing for `National Semiconductor LM94 or LM96194'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Winbond W83791D'... No
Probing for `Winbond W83792D'... No
Probing for `Winbond W83793R/G'... No
Probing for `Nuvoton W83795G/ADG'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Genesys Logic GL518SM'... No
Probing for `Genesys Logic GL520SM'... No
Probing for `Analog Devices ADM9240'... No
Probing for `Dallas Semiconductor DS1780'... No
Probing for `National Semiconductor LM81'... No
Probing for `Analog Devices ADM1026'... No
Probing for `Analog Devices ADM1025'... No
Probing for `Philips NE1619'... No
Probing for `Maxim MAX6639'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `Analog Devices ADM1029'... No
Probing for `Analog Devices ADM1030'... No
Probing for `Analog Devices ADM1031'... No
Probing for `Analog Devices ADM1022'... No
Probing for `Texas Instruments THMC50'... No
Probing for `ITE IT8712F'... No
Probing for `ALi M5879'... No
Probing for `SMSC LPC47M15x/192/292/997'... No
Probing for `SMSC DME1737'... No
Probing for `SMSC SCH5027D-NW'... No
Probing for `SMSC EMC1072'... No
Probing for `SMSC EMC1073'... No
Probing for `SMSC EMC1074'... No
Probing for `Winbond W83791SD'... No
Client found at address 0x2d
Probing for `Myson MTP008'... No
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `National Semiconductor LM85'... No
Probing for `National Semiconductor LM96000 or PC8374L'... No
Probing for `Analog Devices ADM1027'... No
Probing for `Analog Devices ADT7460 or ADT7463'... No
Probing for `SMSC EMC6D100 or EMC6D101'... No
Probing for `SMSC EMC6D102'... No
Probing for `SMSC EMC6D103'... No
Probing for `SMSC EMC6D103S or EMC2300'... No
Probing for `SMSC EMC6W201'... No
Probing for `Winbond WPCD377I'... No
Probing for `Analog Devices ADT7473'... No
Probing for `Analog Devices ADT7476'... No
Probing for `Analog Devices ADT7490'... No
Probing for `Andigilog aSC7611'... No
Probing for `Andigilog aSC7621'... No
Probing for `National Semiconductor LM87'... No
Probing for `Analog Devices ADM1024'... No
Probing for `National Semiconductor LM93'... No
Probing for `National Semiconductor LM94 or LM96194'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Winbond W83783S'... No
Probing for `Winbond W83791D'... No
Probing for `Winbond W83792D'... No
Probing for `Winbond W83793R/G'... No
Probing for `Nuvoton W83795G/ADG'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Nuvoton NCT7904D'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Winbond W83L784R/AR/G'... No
Probing for `Winbond W83L785R/G'... No
Probing for `Genesys Logic GL518SM'... No
Probing for `Genesys Logic GL520SM'... No
Probing for `Genesys Logic GL525SM'... No
Probing for `Analog Devices ADM9240'... No
Probing for `Dallas Semiconductor DS1780'... No
Probing for `National Semiconductor LM81'... No
Probing for `Analog Devices ADM1026'... No
Probing for `Analog Devices ADM1025'... No
Probing for `Philips NE1619'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `Analog Devices ADM1029'... No
Probing for `Analog Devices ADM1030'... No
Probing for `Analog Devices ADM1031'... No
Probing for `Analog Devices ADM1022'... No
Probing for `Texas Instruments THMC50'... No
Probing for `VIA VT1211 (I2C)'... No
Probing for `ITE IT8712F'... No
Probing for `ALi M5879'... No
Probing for `SMSC LPC47M15x/192/292/997'... No
Probing for `SMSC DME1737'... No
Probing for `SMSC SCH5027D-NW'... No
Probing for `Fintek F75373S/SG'... No
Probing for `Fintek F75375S/SP'... No
Probing for `Fintek F75387SG/RG'... No
Probing for `Winbond W83791SD'... No
Client found at address 0x2e
Probing for `Myson MTP008'... No
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `National Semiconductor LM85'... No
Probing for `National Semiconductor LM96000 or PC8374L'... No
Probing for `Analog Devices ADM1027'... No
Probing for `Analog Devices ADT7460 or ADT7463'... No
Probing for `SMSC EMC6D100 or EMC6D101'... No
Probing for `SMSC EMC6D102'... No
Probing for `SMSC EMC6D103'... No
Probing for `SMSC EMC6D103S or EMC2300'... No
Probing for `SMSC EMC6W201'... No
Probing for `Winbond WPCD377I'... No
Probing for `Analog Devices ADT7467 or ADT7468'... No
Probing for `Analog Devices ADT7470'... No
Probing for `Analog Devices ADT7473'... No
Probing for `Analog Devices ADT7475'... No
Probing for `Analog Devices ADT7476'... No
Probing for `Analog Devices ADT7490'... No
Probing for `Andigilog aSC7611'... No
Probing for `Andigilog aSC7621'... No
Probing for `National Semiconductor LM87'... No
Probing for `Analog Devices ADM1024'... No
Probing for `National Semiconductor LM93'... No
Probing for `National Semiconductor LM94 or LM96194'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Winbond W83791D'... No
Probing for `Winbond W83792D'... No
Probing for `Winbond W83793R/G'... No
Probing for `Nuvoton W83795G/ADG'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Nuvoton NCT7904D'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Winbond W83L786NR/NG/R/G'... No
Probing for `Winbond W83L785TS-S'... No
Probing for `Analog Devices ADM9240'... No
Probing for `Dallas Semiconductor DS1780'... No
Probing for `National Semiconductor LM81'... No
Probing for `Analog Devices ADM1026'... No
Probing for `Analog Devices ADM1025'... No
Probing for `Maxim MAX6639'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `Analog Devices ADM1029'... No
Probing for `Analog Devices ADM1030'... No
Probing for `Analog Devices ADM1031'... No
Probing for `Analog Devices ADM1022'... No
Probing for `Texas Instruments THMC50'... No
Probing for `Analog Devices ADM1028'... No
Probing for `Texas Instruments THMC51'... No
Probing for `ITE IT8712F'... No
Probing for `SMSC DME1737'... No
Probing for `SMSC SCH5027D-NW'... No
Probing for `SMSC EMC2103'... No
Probing for `Fintek F75373S/SG'... No
Probing for `Fintek F75375S/SP'... No
Probing for `Fintek F75387SG/RG'... No
Probing for `Winbond W83791SD'... No
Client found at address 0x2f
Probing for `National Semiconductor LM78'... No
Probing for `National Semiconductor LM79'... No
Probing for `National Semiconductor LM80'... No
Probing for `National Semiconductor LM96080'... No
Probing for `TI / National Semiconductor ADC128D818'... No
Probing for `Analog Devices ADT7470'... No
Probing for `Winbond W83781D'... No
Probing for `Winbond W83782D'... No
Probing for `Winbond W83791D'... No
Probing for `Winbond W83792D'... No
Probing for `Winbond W83793R/G'... No
Probing for `Nuvoton W83795G/ADG'... No
Probing for `Nuvoton NCT7802Y'... No
Probing for `Winbond W83627HF'... No
Probing for `Winbond W83627EHF'... No
Probing for `Winbond W83627DHG/W83667HG/W83677HG'... No
Probing for `Asus AS99127F (rev.1)'... No
Probing for `Asus AS99127F (rev.2)'... No
Probing for `Asus ASB100 Bach'... No
Probing for `Winbond W83L786NR/NG/R/G'... No
Probing for `Analog Devices ADM9240'... No
Probing for `Dallas Semiconductor DS1780'... No
Probing for `National Semiconductor LM81'... No
Probing for `Maxim MAX6639'... No
Probing for `Analog Devices ADM1029'... No
Probing for `ITE IT8712F'... No
Probing for `SMSC EMC2104'... No
Probing for `Fintek custom power control IC'... No
Probing for `Winbond W83791SD'... No
Client found at address 0x48
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Client found at address 0x49
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Client found at address 0x4a
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Client found at address 0x4b
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `Analog Devices ADT7481'... No
Client found at address 0x4c
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Analog Devices ADT7466'... No
Probing for `Andigilog aSC7511'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Global Mixed-mode Technology G781'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6642'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `National Semiconductor LM90'... No
Probing for `National Semiconductor LM89/LM99'... No
Probing for `National Semiconductor LM86'... No
Probing for `Analog Devices ADM1032'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6657/MAX6658/MAX6659'... No
Probing for `Maxim MAX6648/MAX6649/MAX6692'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Winbond W83L771W/G'... No
Probing for `Winbond W83L771AWG/ASG'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments TMP401'... No
Probing for `Texas Instruments TMP411A'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP423'... No
Probing for `Texas Instruments TMP431'... No
Probing for `Texas Instruments TMP432'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Texas Instruments TMP442'... No
Probing for `Texas Instruments TMP451'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95235'... No
Probing for `National Semiconductor LM95245'... No
Probing for `National Semiconductor LM63'... No
Probing for `National Semiconductor LM96163'... No
Probing for `Fintek F75363SG'... No
Probing for `National Semiconductor LM73'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `Analog Devices ADT7461'... No
Probing for `Analog Devices ADT7461A, ON Semiconductor NCT1008'... No
Probing for `NXP/Philips SA56004'... No
Probing for `Analog Devices ADT7481'... No
Probing for `Fintek F75383S/M'... No
Probing for `SMSC EMC1002'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1033'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1046'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Probing for `SMSC EMC1072'... No
Probing for `SMSC EMC1073'... No
Probing for `SMSC EMC1074'... No
Probing for `SMSC EMC1402'... No
Probing for `SMSC EMC1403'... No
Probing for `SMSC EMC1404'... No
Probing for `SMSC EMC1422'... No
Probing for `SMSC EMC1423'... No
Probing for `SMSC EMC1424'... No
Client found at address 0x4d
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Global Mixed-mode Technology G781'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6642'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `National Semiconductor LM89/LM99'... No
Probing for `Analog Devices ADM1032'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6659'... No
Probing for `Maxim MAX6646'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments TMP411B'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP423'... No
Probing for `Texas Instruments TMP431'... No
Probing for `Texas Instruments TMP432'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Texas Instruments TMP442'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95234'... No
Probing for `National Semiconductor LM95245'... No
Probing for `National Semiconductor LM73'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `Analog Devices ADT7461'... No
Probing for `Analog Devices ADT7461A, ON Semiconductor NCT1008'... No
Probing for `NXP/Philips SA56004'... No
Probing for `Fintek F75384S/M'... No
Probing for `SMSC EMC1002'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1033'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1046'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Probing for `SMSC EMC1402'... No
Probing for `SMSC EMC1403'... No
Probing for `SMSC EMC1404'... No
Client found at address 0x4e
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6642'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6659'... No
Probing for `Maxim MAX6647'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments TMP411C'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95234'... No
Probing for `National Semiconductor LM64'... No
Probing for `National Semiconductor LM73'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `Fintek F75121R/F75122R/RG (VID+GPIO)'... No
Probing for `Fintek F75111R/RG/N (GPIO)'... No
Probing for `ITE IT8201R/IT8203R/IT8206R/IT8266R'... No
Client found at address 0x4f
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Client found at address 0x50
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Probing for `EDID EEPROM'... No
Client found at address 0x51
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Client found at address 0x52
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Client found at address 0x53
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Client found at address 0x58
Probing for `Analog Devices ADT7462'... No
Probing for `Andigilog aSC7512'... No
Client found at address 0x5c
Probing for `Analog Devices ADT7462'... No
Probing for `SMSC EMC1072'... No
Probing for `SMSC EMC1073'... No
Probing for `SMSC EMC1074'... No
Client found at address 0x73
Probing for `FSC Poseidon I'... No
Probing for `FSC Poseidon II'... No
Probing for `FSC Scylla'... No
Probing for `FSC Hermes'... No
Probing for `FSC Heimdal'... No
Probing for `FSC Heracles'... No
Probing for `FSC Hades'... No
Probing for `FSC Syleus'... No
Client found at address 0x77
Probing for `Asus Mozart-2'... No
Next adapter: AMDGPU DM i2c hw bus 0 (i2c-3)
Do you want to scan it? (yes/NO/selectively): yes
Next adapter: AMDGPU DM i2c hw bus 1 (i2c-4)
Do you want to scan it? (yes/NO/selectively): yes
Next adapter: AMDGPU DM i2c hw bus 2 (i2c-5)
Do you want to scan it? (yes/NO/selectively): yes
Next adapter: AMDGPU DM aux hw bus 1 (i2c-6)
Do you want to scan it? (yes/NO/selectively): yes
Next adapter: AMDGPU DM aux hw bus 2 (i2c-7)
Do you want to scan it? (yes/NO/selectively): yes
Sorry, no sensors were detected.
Either your system has no sensors, or they are not supported, or
they are connected to an I2C or SMBus adapter that is not
supported. If you find out what chips are on your board, check
https://hwmon.wiki.kernel.org/device_support_status for driver status.
root@pve-h01:~# sensors
amdgpu-pci-0400
Adapter: PCI adapter
vddgfx: 1.46 V
vddnb: 662.00 mV
edge: +49.0°C
PPT: 27.00 W
nvme-pci-0300
Adapter: PCI adapter
Composite: +51.9°C (low = -5.2°C, high = +79.8°C)
(crit = +84.8°C)
k10temp-pci-00c3
Adapter: PCI adapter
Tctl: +49.9°C
root@pve-h01:~# wget https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
--2025-02-04 12:40:55-- https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.109.133, 185.199.110.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 33764 (33K) [text/plain]
Saving to: ‘pve-mod-gui-sensors.sh’
pve-mod-gui-sensors.sh 100%[==============================================>] 32.97K --.-KB/s in 0s
2025-02-04 12:40:55 (132 MB/s) - ‘pve-mod-gui-sensors.sh’ saved [33764/33764]
root@pve-h01:~# bash pve-mod-gui-sensors.sh install
Installing the Proxmox VE sensors display mod...
Preparing mod installation...
Detecting support for CPU temperature sensors...
Detected sensors:
k10temp-pci-00c3
Detecting support for RAM temperature sensors...
[warning] No RAM temperature sensors found.
Detecting support for HDD/SDD temperature sensors...
[warning] No HDD/SSD temperature sensors found.
Detecting support for NVMe temperature sensors...
Detected sensors:
nvme-pci-0300
Detecting support for fan speed readings...
[warning] No fan speed sensors found.
Do you wish to display temperatures in degrees Celsius [C] or Fahrenheit [f]? (C/f):
[info] Temperatures will be presented in degrees Celsius.
Do you wish to enable system information? (Y/n):
[info] System information will be displayed...
Backup of "/usr/share/perl5/PVE/API2/Nodes.pm" saved to "/root/backup/Nodes.pm.2025-02-04_12-41-09".
Backup of "/usr/share/pve-manager/js/pvemanagerlib.js" saved to "/root/backup/pvemanagerlib.js.2025-02-04_12-41-09".
Sensors' output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
System information output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
Expanded space in "/usr/share/pve-manager/js/pvemanagerlib.js".
Sensor display items added to the summary panel in "/usr/share/pve-manager/js/pvemanagerlib.js".
Restarting PVE proxy...
Installation completed.
[info] Clear the browser cache to ensure all changes are visualized.
root@pve-h01:~#inspur NF5280M5(eSlim SP7-2212P) Intel Xeon Gold 6138 x 2 실행 예
root@pve-sky01:~# sensors-detect
# sensors-detect version 3.6.0
# System: eSlim Korea SP7-2212P [00001]
# Kernel: 6.8.12-8-pve x86_64
# Processor: Intel(R) Xeon(R) Gold 6138 CPU @ 2.00GHz (6/85/4)
This program will help you determine which kernel modules you need
to load to use lm_sensors most effectively. It is generally safe
and recommended to accept the default answers to all questions,
unless you know what you're doing.
Some south bridges, CPUs or memory controllers contain embedded sensors.
Do you want to scan for them? This is totally safe. (YES/no):
Module cpuid loaded successfully.
Silicon Integrated Systems SIS5595... No
VIA VT82C686 Integrated Sensors... No
VIA VT8231 Integrated Sensors... No
AMD K8 thermal sensors... No
AMD Family 10h thermal sensors... No
AMD Family 11h thermal sensors... No
AMD Family 12h and 14h thermal sensors... No
AMD Family 15h thermal sensors... No
AMD Family 16h thermal sensors... No
AMD Family 17h thermal sensors... No
AMD Family 15h power sensors... No
AMD Family 16h power sensors... No
Hygon Family 18h thermal sensors... No
Intel digital thermal sensor... Success!
(driver `coretemp')
Intel AMB FB-DIMM thermal sensor... No
Intel 5500/5520/X58 thermal sensor... No
VIA C7 thermal sensor... No
VIA Nano thermal sensor... No
Some Super I/O chips contain embedded sensors. We have to write to
standard I/O ports to probe them. This is usually safe.
Do you want to scan for Super I/O sensors? (YES/no):
Probing for Super-I/O at 0x2e/0x2f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Probing for Super-I/O at 0x4e/0x4f
Trying family `National Semiconductor/ITE'... No
Trying family `SMSC'... No
Trying family `VIA/Winbond/Nuvoton/Fintek'... No
Trying family `ITE'... No
Some systems (mainly servers) implement IPMI, a set of common interfaces
through which system health data may be retrieved, amongst other things.
We first try to get the information from SMBIOS. If we don't find it
there, we have to read from arbitrary I/O ports to probe for such
interfaces. This is normally safe. Do you want to scan for IPMI
interfaces? (YES/no):
Found `IPMI BMC KCS' at 0xca2... Success!
(confidence 8, driver `to-be-written')
Some hardware monitoring chips are accessible through the ISA I/O ports.
We have to write to arbitrary I/O ports to probe them. This is usually
safe though. Yes, you do have ISA I/O ports even if you do not have any
ISA slots! Do you want to scan the ISA I/O ports? (YES/no):
Probing for `National Semiconductor LM78' at 0x290... No
Probing for `National Semiconductor LM79' at 0x290... No
Probing for `Winbond W83781D' at 0x290... No
Probing for `Winbond W83782D' at 0x290... No
Lastly, we can probe the I2C/SMBus adapters for connected hardware
monitoring devices. This is the most risky part, and while it works
reasonably well on most systems, it has been reported to cause trouble
on some systems.
Do you want to probe the I2C/SMBus adapters now? (YES/no):
Using driver `i2c-i801' for device 0000:00:1f.4: Lewisburg (PCH)
Next adapter: SMBus I801 adapter at 3fe0 (i2c-0)
Do you want to scan it? (YES/no/selectively):
Client found at address 0x18
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95233'... No
Probing for `National Semiconductor LM95234'... No
Probing for `National Semiconductor LM95235'... No
Probing for `National Semiconductor LM95245'... No
Probing for `National Semiconductor LM64'... No
Probing for `SMSC EMC1047'... No
Probing for `SMSC EMC1402'... No
Probing for `SMSC EMC1403'... No
Probing for `SMSC EMC1404'... No
Probing for `ST STTS424'... No
Probing for `ST STTS424E'... No
Probing for `ST STTS2002'... No
Probing for `ST STTS3000'... No
Probing for `NXP SE97/SE97B'... No
Probing for `NXP SE98'... No
Probing for `Analog Devices ADT7408'... No
Probing for `IDT TS3000/TSE2002'... No
Probing for `IDT TSE2004'... No
Probing for `IDT TS3001'... No
Probing for `Maxim MAX6604'... No
Probing for `Microchip MCP9804'... No
Probing for `Microchip MCP9808'... No
Probing for `Microchip MCP98242'... No
Probing for `Microchip MCP98243'... No
Probing for `Microchip MCP98244'... No
Probing for `Microchip MCP9843'... No
Probing for `ON CAT6095/CAT34TS02'... No
Probing for `ON CAT34TS02C'... No
Probing for `ON CAT34TS04'... No
Probing for `Atmel AT30TS00'... No
Probing for `Giantec GT30TS00'... No
Client found at address 0x48
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `National Semiconductor LM77'... No
Probing for `Analog Devices ADT7410/ADT7420'... No
Probing for `Analog Devices ADT7411'... No
Probing for `Maxim MAX6642'... No
Probing for `Texas Instruments TMP435'... No
Probing for `National Semiconductor LM73'... No
Probing for `National Semiconductor LM92'... No
Probing for `National Semiconductor LM76'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `SMSC EMC1023'... No
Probing for `SMSC EMC1043'... No
Probing for `SMSC EMC1053'... No
Probing for `SMSC EMC1063'... No
Client found at address 0x4e
Probing for `National Semiconductor LM75'... No
Probing for `National Semiconductor LM75A'... No
Probing for `Dallas Semiconductor DS75'... No
Probing for `Analog Devices ADM1021'... No
Probing for `Analog Devices ADM1021A/ADM1023'... No
Probing for `Maxim MAX1617'... No
Probing for `Maxim MAX1617A'... No
Probing for `Maxim MAX1668'... No
Probing for `Maxim MAX1805'... No
Probing for `Maxim MAX1989'... No
Probing for `Maxim MAX6642'... No
Probing for `Maxim MAX6655/MAX6656'... No
Probing for `TI THMC10'... No
Probing for `National Semiconductor LM84'... No
Probing for `Genesys Logic GL523SM'... No
Probing for `Onsemi MC1066'... No
Probing for `Maxim MAX1618'... No
Probing for `Maxim MAX1619'... No
Probing for `National Semiconductor LM82/LM83'... No
Probing for `Maxim MAX6654'... No
Probing for `Maxim MAX6690'... No
Probing for `Maxim MAX6659'... No
Probing for `Maxim MAX6647'... No
Probing for `Maxim MAX6680/MAX6681'... No
Probing for `Maxim MAX6695/MAX6696'... No
Probing for `Texas Instruments TMP400'... No
Probing for `Texas Instruments TMP411C'... No
Probing for `Texas Instruments TMP421'... No
Probing for `Texas Instruments TMP422'... No
Probing for `Texas Instruments TMP435'... No
Probing for `Texas Instruments TMP441'... No
Probing for `Texas Instruments AMC6821'... No
Probing for `National Semiconductor LM95234'... No
Probing for `National Semiconductor LM64'... No
Probing for `National Semiconductor LM73'... No
Probing for `Maxim MAX6633/MAX6634/MAX6635'... No
Probing for `NXP/Philips SA56004'... No
Probing for `Fintek F75121R/F75122R/RG (VID+GPIO)'... No
Probing for `Fintek F75111R/RG/N (GPIO)'... No
Probing for `ITE IT8201R/IT8203R/IT8206R/IT8266R'... No
Client found at address 0x50
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Probing for `EDID EEPROM'... No
Client found at address 0x51
Probing for `Analog Devices ADM1033'... No
Probing for `Analog Devices ADM1034'... No
Probing for `SPD EEPROM'... No
Next adapter: AST i2c bit bus (i2c-1)
Do you want to scan it? (yes/NO/selectively):
Now follows a summary of the probes I have just done.
Just press ENTER to continue:
Driver `coretemp':
* Chip `Intel digital thermal sensor' (confidence: 9)
Driver `to-be-written':
* ISA bus, address 0xca2
Chip `IPMI BMC KCS' (confidence: 8)
Note: there is no driver for IPMI BMC KCS yet.
Check https://hwmon.wiki.kernel.org/device_support_status for updates.
To load everything that is needed, add this to /etc/modules:
#----cut here----
# Chip drivers
coretemp
#----cut here----
If you have some drivers built into your kernel, the list above will
contain too many modules. Skip the appropriate ones!
Do you want to add these lines automatically to /etc/modules? (yes/NO)
Unloading cpuid... OK
root@pve-sky01:~# sensors
coretemp-isa-0000
Adapter: ISA adapter
Package id 0: +19.0°C (high = +83.0°C, crit = +93.0°C)
Core 0: +16.0°C (high = +83.0°C, crit = +93.0°C)
Core 1: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 2: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 3: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 4: +7.0°C (high = +83.0°C, crit = +93.0°C)
Core 8: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 9: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 10: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 11: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 12: +14.0°C (high = +83.0°C, crit = +93.0°C)
Core 16: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 17: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 18: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 19: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 20: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 24: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 25: +8.0°C (high = +83.0°C, crit = +93.0°C)
Core 26: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 27: +9.0°C (high = +83.0°C, crit = +93.0°C)
Core 28: +9.0°C (high = +83.0°C, crit = +93.0°C)
pch_lewisburg-virtual-0
Adapter: Virtual device
temp1: +29.0°C
nvme-pci-b000
Adapter: PCI adapter
Composite: -4.2°C (low = -0.1°C, high = +69.8°C) ALARM
(crit = +89.8°C)
coretemp-isa-0001
Adapter: ISA adapter
Package id 1: +20.0°C (high = +83.0°C, crit = +93.0°C)
Core 0: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 1: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 2: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 3: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 4: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 8: +12.0°C (high = +83.0°C, crit = +93.0°C)
Core 9: +12.0°C (high = +83.0°C, crit = +93.0°C)
Core 10: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 11: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 12: +12.0°C (high = +83.0°C, crit = +93.0°C)
Core 16: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 17: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 18: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 19: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 20: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 24: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 25: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 26: +10.0°C (high = +83.0°C, crit = +93.0°C)
Core 27: +11.0°C (high = +83.0°C, crit = +93.0°C)
Core 28: +11.0°C (high = +83.0°C, crit = +93.0°C)
power_meter-acpi-0
Adapter: ACPI interface
power1: 122.00 W (interval = 1.00 s)
nvme-pci-3b00
Adapter: PCI adapter
Composite: +24.9°C
root@pve-sky01:~# wget https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
--2025-02-04 14:23:16-- https://raw.githubusercontent.com/Meliox/PVE-mods/main/pve-mod-gui-sensors.sh
Resolving raw.githubusercontent.com (raw.githubusercontent.com)... 185.199.111.133, 185.199.110.133, 185.199.109.133, ...
Connecting to raw.githubusercontent.com (raw.githubusercontent.com)|185.199.111.133|:443... connected.
HTTP request sent, awaiting response... 200 OK
Length: 33764 (33K) [text/plain]
Saving to: ‘pve-mod-gui-sensors.sh’
pve-mod-gui-sensors.sh 100%[==============================================>] 32.97K --.-KB/s in 0.001s
2025-02-04 14:23:16 (44.2 MB/s) - ‘pve-mod-gui-sensors.sh’ saved [33764/33764]
root@pve-sky01:~# bash pve-mod-gui-sensors.sh install
Installing the Proxmox VE sensors display mod...
Preparing mod installation...
Detecting support for CPU temperature sensors...
Detected sensors:
coretemp-isa-0000
coretemp-isa-0001
Do you wish to display temperatures for all cores [C] or just an average temperature per CPU [a]? (C/a):
[info] Temperatures will be displayed for all cores.
Detecting support for RAM temperature sensors...
[warning] No RAM temperature sensors found.
Detecting support for HDD/SDD temperature sensors...
[warning] No HDD/SSD temperature sensors found.
Detecting support for NVMe temperature sensors...
Detected sensors:
nvme-pci-b000
nvme-pci-3b00
Detecting support for fan speed readings...
[warning] No fan speed sensors found.
Do you wish to display temperatures in degrees Celsius [C] or Fahrenheit [f]? (C/f):
[info] Temperatures will be presented in degrees Celsius.
Do you wish to enable system information? (Y/n):
[info] System information will be displayed...
Backup of "/usr/share/perl5/PVE/API2/Nodes.pm" saved to "/root/backup/Nodes.pm.2025-02-04_14-23-31".
Backup of "/usr/share/pve-manager/js/pvemanagerlib.js" saved to "/root/backup/pvemanagerlib.js.2025-02-04_14-23-31".
Sensors' output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
System information output added to "/usr/share/perl5/PVE/API2/Nodes.pm".
Expanded space in "/usr/share/pve-manager/js/pvemanagerlib.js".
Sensor display items added to the summary panel in "/usr/share/pve-manager/js/pvemanagerlib.js".
Restarting PVE proxy...
Installation completed.
[info] Clear the browser cache to ensure all changes are visualized.
root@pve-sky01:~#
